Data collection

Agrovista Soil Health

Understanding why your soils are performing the way they are.

Agrovista Decision Support Helping you make the right decisions for you and your farm.

Soil Variation Scanning

Soil variation scanning is the entry level soil scan offer from Agrovista, offering some very useful information at a competitive cost.

Service use:

  • Variable rate seed
  • Slug pellet zones
  • Nutrient sampling zones (soil sampling not included.)

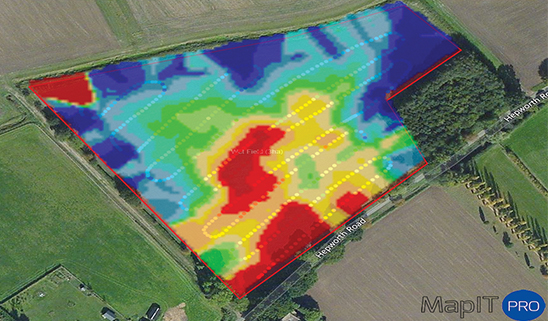

Soil variation scanning uses one of two types of technology – electromagnetic induction (EM38-MK2) or electroconductivity. Both services create the same variation map. The operator drives up and down the field parallel to tramlines. In a 24m tramline system they will travel at 12m intervals and in a 36m system at 18m, avoiding travelling on tramlines.

Good soil moisture levels are required to capture the best data and each field must be scanned all at once and not across different days.

For more information on Soil Variation Scanning click here.

Biomass Imagery

Service use

  • Variable rate nitrogen
  • Variable rate PGRs
  • Intelligent crop walking

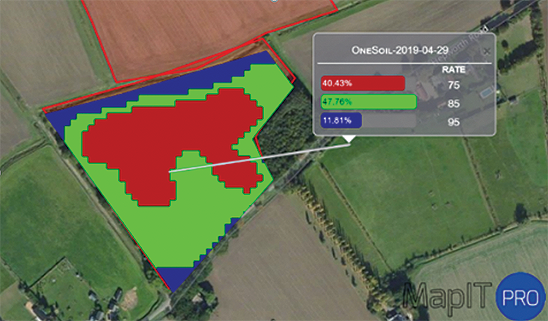

Satellite images provide us with NDVI images that indicate how photosynthetic a crop is. To receive biomass images, we need field locations. Once set up on the system, view dates need to be requested. For variable rate nitrogen we would use the newest cloudless image possible, we would then require information on the nominal rate to be applied and a tolerance to work to. Common variance would be 10-20%.

For more information on Biomass Imagery click here

mapit prp biomass scan of a field

Download our Soil Health information sheet here.
